Mission Essential Functions / Critical Systems

CRITICAL SYSTEMS AND FUNCTIONS

MTD (Maximum Tolerable Downtime) is the longest period of a business outage without causing permanent business failure. Each organization will have its own MTD.

RTO (Recovery Time Objective): This is the expected time to get a system back online and functional. If the RTO exceeds the MTD, plan to move to an alternate site.

RPO (Recovery Point Objective): This measures how much data the company will lose in a given time. If the RPO is 4 hours, the backup must run every 4 hours; if the RPO is 12 hours, a backup must run every 12 hours.

KPI (Key Performance Indicators): This measures the reliability of an asset such as a server.

1. MTTF (Mean Time to Failure): This is normally an estimate of a product's expected lifetime, estimated in thousands of hours.

2. MTBF (Mean Time Between Failures): This is the rating of a component/device that predicts the time between failures. It can be listed in tens of thousands or thousands of hours.

3. MTTR (Mean Time to Repair): This is the actual time it takes to get a system back online. People often confuse this with RTO, which is the expected time, not the actual time to repair. This can also be called "replace" or "recover".

Media Sanitization Methods - Hard Drive / Paper

HARD DISKS

If the goal is for the media never to be reused, there are three methods (for mechanical drives, not solid-state)

1. One method is shredding. You must disassemble the drive, take the platters, and run them through a shredder.

2. The other method is to use powerful magnets. This is typically done with specialized machinery that can be quite costly. If you have had several dives, the degaussing method is the fastest of the two options.

3. Another method is to use pulverizing, in which a machine crushes the drive to destroy all components, making the data unrecoverable.

If the plan is to repurpose the drives, the best method is to employ a disk wiping/overwriting program. It is better to use a program that writes random patterns of ones and zeroes. Even if all you use is the zero-filling approach, specialized tools can still recover data. Wiping is also known as purging.

Formatting will not help with wiping data. All it does is remove the reference to the data.

Solid State Drives sometimes come with a built-in data sanitization tool. Degaussing will not work on SSDs.

PAPER MEDIA

It is best to use a cross-cut shredder. Some of these devices are rated according to the size of the cut they make.

Another method is that some high-security organizations add water to the paper after it has been shredded. This displaces the ink, and it is known as "Pulling."

You can also burn paper documents. We did this in the military. Since the information we had was considered Top Secret, we burned the paper in an incinerator with a screen at the top to keep the ashes from floating off. Then, we pulverized the ashes.

Identity and Authentication Factors

IDENTITY

The first part of a login process is providing some form of identification, such as a username or email address.

AUTHENTICATION FACTORS

Proves that the user is who they claim to be. Authentication credentials should be kept secret. This helps prevent unauthorized users from gaining access to confidential information. There are five authentication factors.

1. Something you know: Password, PIN, passphrase, security question answer, CAPTCHA, a PIN that was mailed to you.

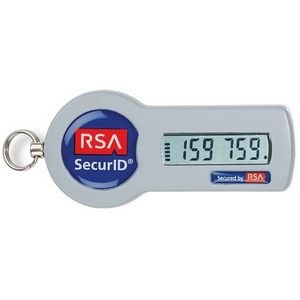

2.  Something you have: CAC (Common Access Card), PIV (Personal Identity Verification), Smart Card, Digital Certificate (CAC, PIV, & Smart Card are all digital certificates), PIN or code sent to your cell phone, key fob or token (pic to the right)

3. Something you are: Fingerprint, iris scan, retina scan, facial scan, voice pattern, palm geometry.

4. Somewhere you are: IP address, MAC address, GPS location computer name.

5. Something you do: Signature analysis, signature dynamics, have the user sign their name, keyboard timing, keystroke dynamics, gait (the way you walk), finger swipe pattern.

Certificates - PKI (Public Key Infrastructure)

Types of Certificates

Self-signed: This type of certificate is owned by the server that signed it. They will be untrusted inside an organization until the certificate is imported into the machine attempting to access the server,

Root: Identifies the CA (Certificate Authority). There is no other authority higher than the root, therefore its certificate must be self-signed.

User: There are certificate templates for standard users, administrators, recovery agents, smart card logon, etc.

Email: These are used for digital signature and the encryption/decryption of emails. Emails can be referred to as messages or electronic messages.

Code-signing certificates: These are used with software/applications to validate the end-user the integrity of the product.

Domain Validation (DV): This proves the ownership for a domain. Not the most secure method as it is vulnerable to compromise.

Extended Validation (EV): A thorough check is required to validate the ownership of the domain. This is also the most trusted certificate. EV protects against phishing attacks.

Subject Alternative Name (SAN): Some organizations own multiple domains and may choose to combine them into one certificate.

google.com

google.ca

android.com

youtube.com

Above are just a few of the domains Google owns. These can be combined into one certificate, making this certificate a SAN. If the company adds another domain after the certificate has been issued, they will need to purchase a new certificate.

Below is another example of when you would use a SAN certificate. If the organization installed three different web servers and the certificate needed to match the hostname, it would need a SAN certificate.

sales.example.com

info.example.com

training.example.com

In this case, the hostnames for the above are as follows: "sales", "info", and "training".

Wildcard: The Wildcard certificate will protect all first-level sub-domains as long as they belong to the same domain. This reduces the burden of an administrator have to account for a certificate for each sub-domain.

research.practice.com

marketing.practice.com

dallas.practice.com

chicago.practice.com

seattle.practice.com

The five above all belong to the same domain, so instead of five certificates, one could be purchased:

*.practice.com

X.509 Certificate: What you need to know

Hashed with SHA

Encrypted with RSA

The entity that issued the certificate

The entity that the certificate was issued to

The validity date: from and to

SSL/TLS Accelerator vs SSL Decryptor

SSL/TLS Accelerator

An SSL/TLS Accelerator is normally a plug-in card on the web server, can also be included in a load balancing appliance. The web server is busy heading out the proper web page to be displayed. In the mean-time, the accelerator handles the decryption and encryption for the TLS session.

The accelerator does not inspect the traffic.

SSL Decryptor

An SSL decryptor is sometimes called an inspector or interceptor. It is employed as some type of proxy to inspect encrypted traffic as it enters or leaves the network.

This protects against someone trying to use encryption to exfiltrate data. The device is placed at the edge of the network.

The decryptor can perform the following functions"

1. Block connections using a weak cipher suite.

2. Prevent inspection of authorized traffic that is subject to privacy.

3. Prevent sessions that cannot be inspected.

Hashing Algorithms: MD5, SHA, RIPEMD, & HMAC

HASHING

Hashing is used to verify integrity, making sure the media has not been altered, changed, or modified by accidental or intentional means. Hashing can also be called a checksum or message digest.

A hash is a one-way function that produces a fixed-length output. This output cannot be reversed to produce the original input. Hashing only alerts you to the fact that something has changed, in other words, it has lost its integrity.

Hashing is used for many reasons:
1. The most common and widely used methods are with passwords. When an individual login to the PC their password is hashed and matched against the hashes that are stored if it matches the user is authenticated.

2. Sometimes hashing is used to make sure financial records have not been changed. This process can be performed daily, weekly, or monthly. This is referred to as "file integrity monitoring."

3. File integrity monitoring can be used to check the hash value of image files. If the "hash value has changed" on website images, or other images being sent or stored at the organization, then the most likely explanation is someone is using "steganography" to hide stolen data.

4. Running a file integrity program to check configuration files on network devices to compare them to the previous week or months hashes to look for changes.

5. Vendors sometimes provide these for applications, patches, and updates to verify you received the entire download or that it has not been modified. You would need to run a hashing algorithm to see if the hash matches that on the website.

HASHING ALGORITHMS

MD5 - Message-Digest 5 uses a 128-bit has value. It is the fast of the hashing algorithms but has documented collisions. Despite being deprecated it is still one of the most widely used hashing programs.

SHA/SHA-1 - Secure Hash Algorithm. SHA was created to address the weaknesses of MD5. Both SHA and SHA-1 use a 160-bit digest.

SHA-2 was created to address the problems with SHA-1. SHA-2 uses longer digests (256, 384, & 512).

RIPEMD - RACE Integrity Primitives Evaluation Message Digest. Produces performance and encryption strength similar to SHA-1.

HMAC - Hash-based Message Authentication Code is used to verify both the integrity and authenticity of a message. It combines a hash function and a secret key.
